Use SL518 acoustic music socket circuit diagram

Published:2014/3/5 21:41:00 Author:lynne | Keyword: Use SL518 acoustic music socket circuit diagram, | From:SeekIC

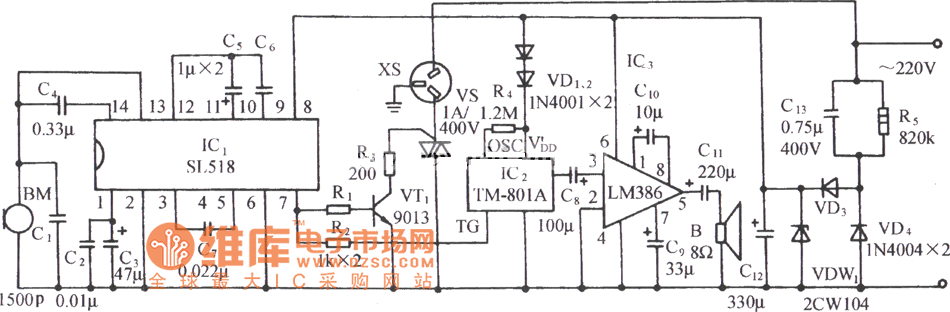

The circuit shown in FIG. It is based on voice ASIC SL518 as the core component. SL518 SL517 is based on the improvement of products, fewer external components required, the output emitter output, driving ability.
