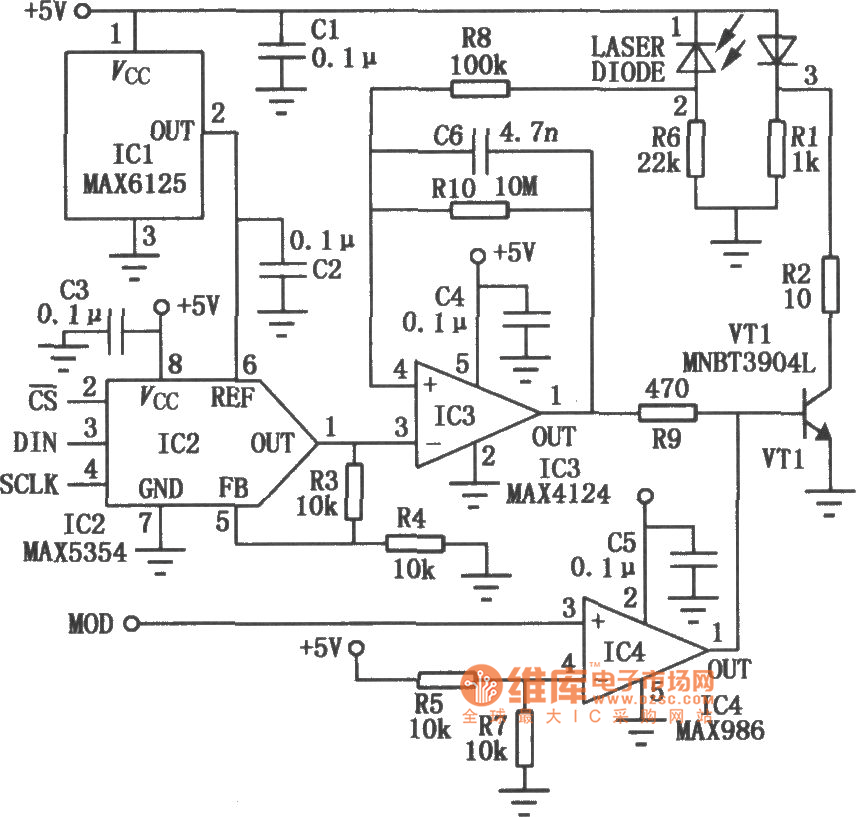

Visual CNC laser modulation drive circuit diagram

Published:2014/3/3 19:54:00 Author: | Keyword: Visual CNC laser modulation drive circuit diagram, | From:SeekIC

Visual CNC laser modulation drive circuit diagram
