Wideband_fast_settling_op_amp_with_multplex_input

Published:2009/7/24 21:45:00 Author:Jessie | From:SeekIC

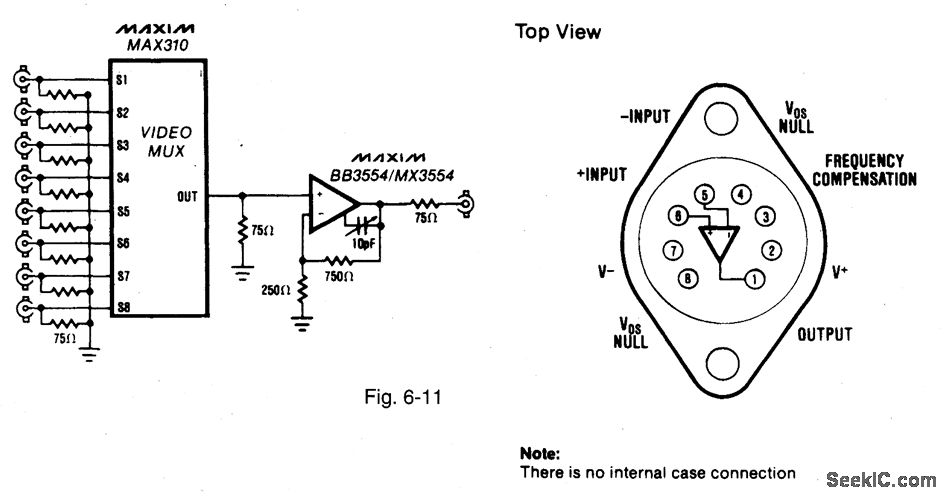

Figure 6-11 shows a BB3554/MX3554 used with a MAX310 to provide eight channels of video signal to a single cable. The op amp slews at 1000 V/μs and provides up to ±100 mA output with±10-V supplies. MAXIM NEW RELEASES DATA BOOK, 1993, P. 3-43.
