Z_AXLS_MARKER_GENERATOR

Published:2009/7/16 20:32:00 Author:Jessie | From:SeekIC

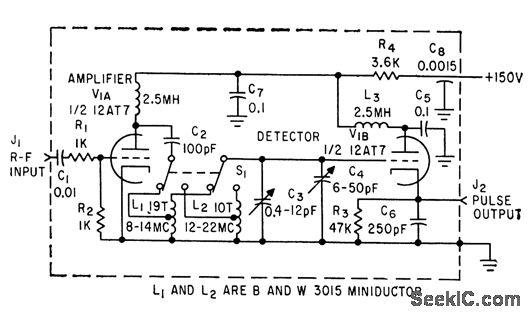

Circuit provides high-intensity dot marker on trace at any desired frequency in range from 8 to 22 Mc, in two overlapping ranges, with better than 1% long-term accuracy. Z-axis pulse is generated when external swept r-f oscillator passes through frequency to which tank circuit is tuned.-D.J. Odorizzi, Z-Axis Marker Generator for Bandpass Circuit Alignment, EJectronics,33:26,p 108-110.
