_10V_AT_1A

Published:2009/7/19 21:41:00 Author:Jessie | From:SeekIC

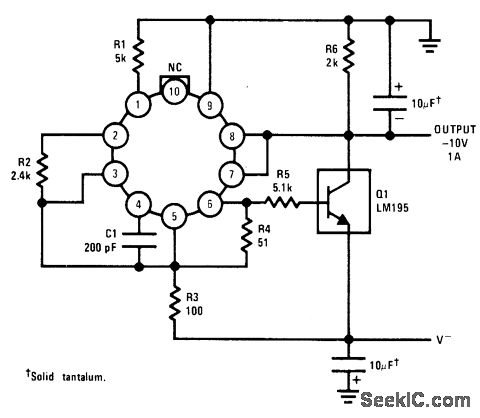

National LM195 power transistor, used with LM105 regulator, provides full overload protection. Load regulation is better than 2 mV. Circuit requires only 2-V differential between input and output voltages.-R. Dob-kin, Fast IC Power Transistor with Thermal Protection, National Semiconductor, Santa Clara, CA, 1974, AN-110, p 5.
