_10V_AT_2A

Published:2009/7/19 21:35:00 Author:Jessie | From:SeekIC

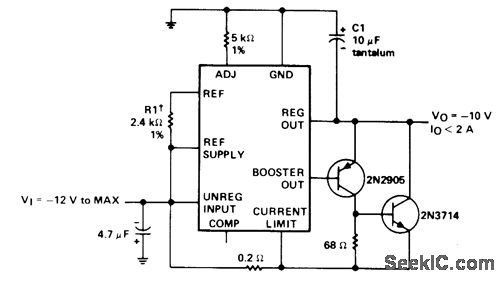

Negative-voltage regulator using SN52104 or SN72304 accepts input voltage of -12V to -40V and uses only single external resistor to provide regulated output of -10 V with typical load regulation of 1mV and input regulation of 0.06%. ICs are interchange-able with LM104 and LM304 respectively.- The Linear and Interface Circuits Data Book for Design Engineers, Texas Instruments, Dallas, TX, 1973, p 5-5.
