_10__20_AND__30_V

Published:2009/7/15 21:34:00 Author:Jessie | From:SeekIC

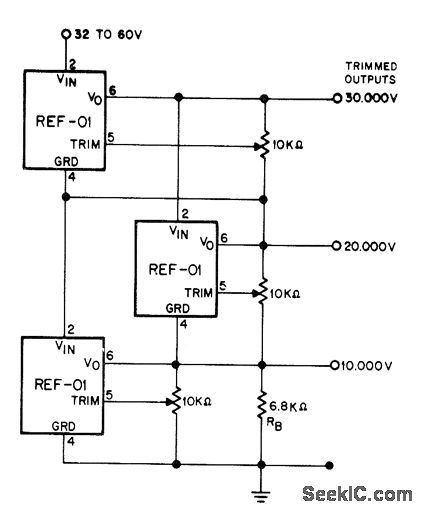

Simple stacking arrangement of Precision Monolithics REF-01 voltage references gives near-perfect line regulation for inputs of 32 to 60 V, with output changes less than noise voltage of devices for input extremes. Any number of units can be stacked to obtain additional output voltages.- + 10 V Precision Voltage Reference, Precision Monolithics, Santa Clara, CA, 1977, REF-01, p 7.
