_15_V_SUPPLY_FOR_ZN416E_CIRCUITS

Published:2009/6/26 5:07:00 Author:Jessie | From:SeekIC

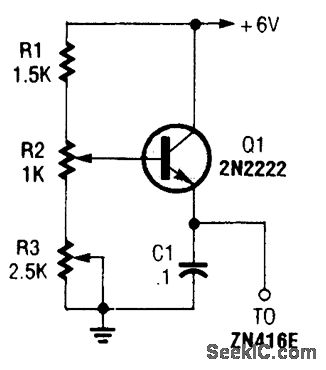

This regulator can be used with a +6-V source to supply ZN416E low-voltage TRF radio-receiver IC the necessary +1.5 V. R3 sets output voltage.
