_5_V_AT_425_mA_

Published:2009/7/17 1:42:00 Author:Jessie | From:SeekIC

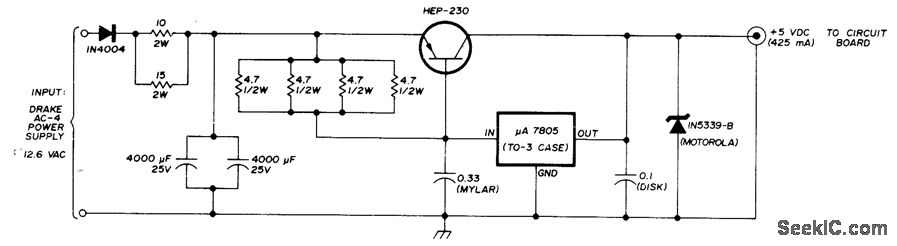

Developed for syllabic VOX system used with Drake T-4XB and R-4B transmitter and receiver. Input is taken from 12.6-VAC transformer winding of power supply for Drake, so equipment power switch also turns off 5-V supply. - R.W. Hitchcock, Syllabic VOX System for Drake Equipment, Ham Radio, Aug. 1976, p 24-29.
