multipath supply output circuit

Published:2011/6/28 6:39:00 Author:chopper | Keyword: multipath supply, output circuit | From:SeekIC

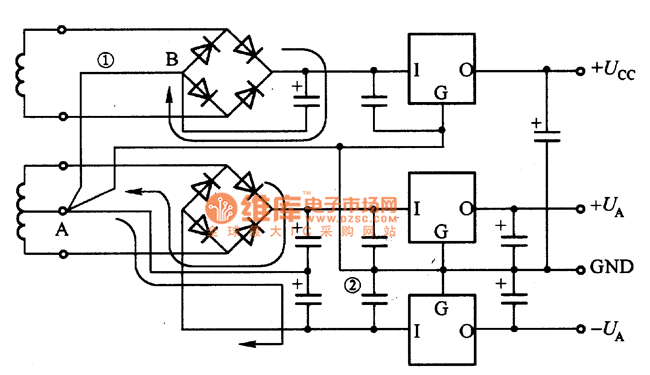

The picture is a multipath supply output circuit,it will output three values of voltage like +UCC and ±UA.In the circuit,point A is the reference earthing point of positive-negative double supply;point B is the reference earthing point of positive power supply.① is the earth lead among reference potentials; ② is the reference earth lead of the regulator.
