16-channel remote control circuit (T998C)

Published:2011/8/1 2:25:00 Author:Christina | Keyword: 16-channel, remote control | From:SeekIC

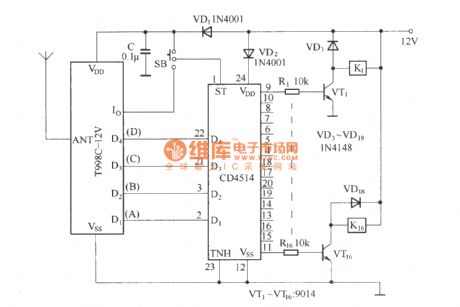

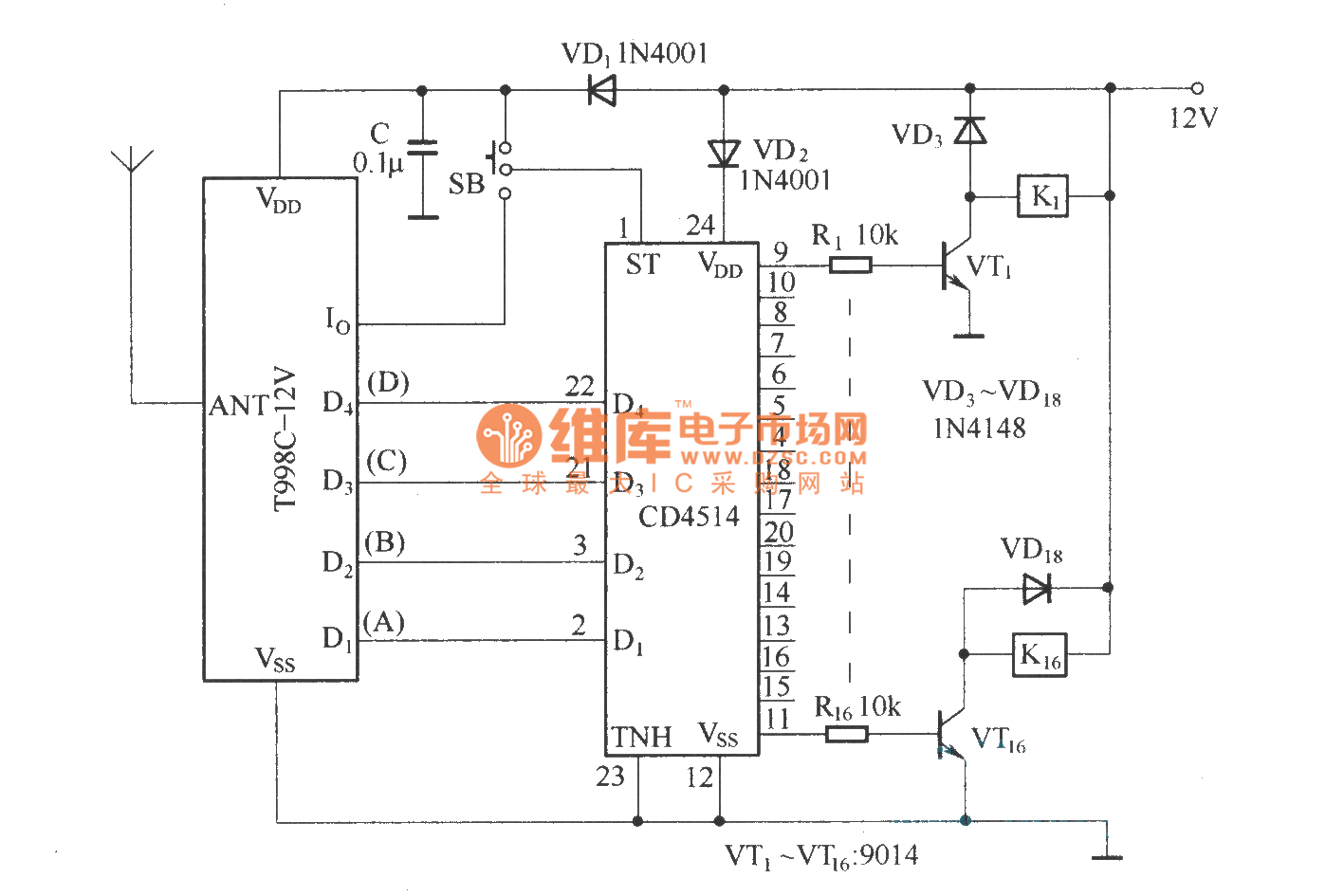

As the figure shows, the 16-channel remote control circuit (T998C) is composed of the T998C-12 V receiving module and the four-sixteen-channel decoder CD4514. This circuit can be used as the latched output and the unlatched output, the SB is the switch. When the SB is connected with the VDD, the circuit is in the latched output state, the sixteem output ports are not controlled by the Io output state; when the SB is connected with the Io output port, the circuit is in the unlatched output state, the sixteem output ports are controlled by the Io output state. When you are using this 16-channel remote control receiving circuit, you must follow the binary-decimal encoding mode to code, and you also need to follow the coding table.
