27255_MC_CONTROL_TRANSMITTER

Published:2009/7/22 21:05:00 Author:Jessie | From:SeekIC

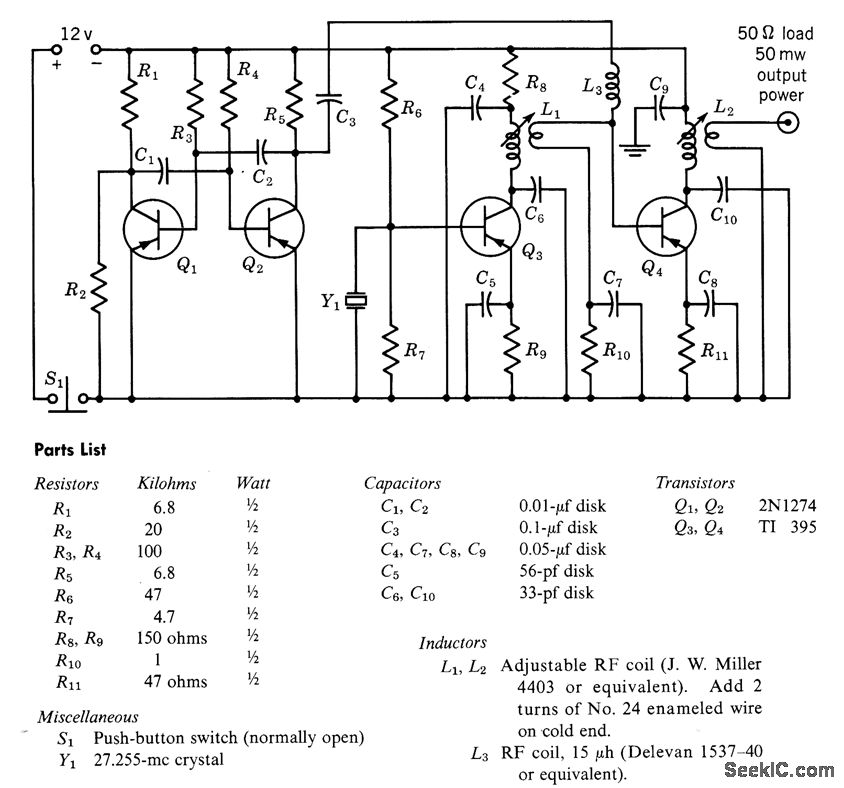

Free-running multivibrator keys power amplifier Q4 at audio role. Range is about 1 mile C6 tunes collector of oscillator to crystal frequency.-Texas lnstruments Inc., Transistor Circuit Design, McGraw-Hill, N.Y., 1963, p 361.
