ADJUSTABLE_D_C_LEVEL_SHIFTER

Published:2009/7/17 1:53:00 Author:Jessie | From:SeekIC

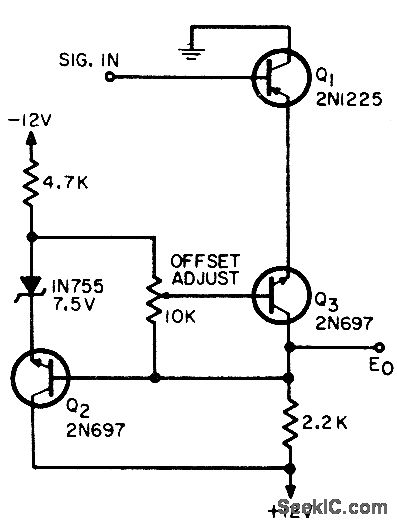

Shills d-c level of signal accurately and continuously without affecting gain, from +4 V to +z V d-c center-voltage output. Input ac signal varies 2 v about +4 v d-c. Other offset voltages can also be obtained.-H Anway Continuously Adjustable DC Level Shifter, EEE, 12:10, p 59.
