A Simple Timer Circuit Composed of MC14541

Published:2011/7/9 2:06:00 Author:Joyce | Keyword: Simple, Timer | From:SeekIC

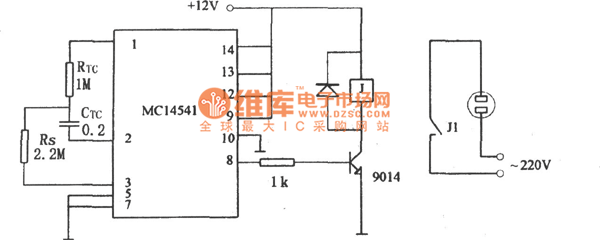

As shown in the figure is a simple timer circuit composed of MC14541, which is an integrated circuit. According to the parameters in the figure, its timing time is 3hours, and it can use different values of RTC、CTC and Rs to get various needed timing control .
