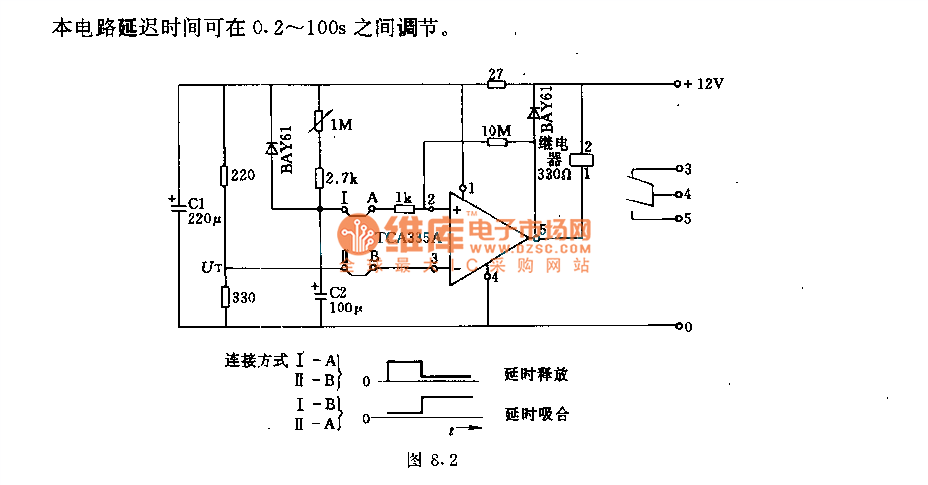

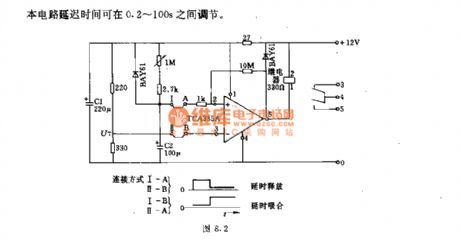

Adjustable relay delay switch circuit

Published:2011/3/22 22:44:00 Author:Jessie | Keyword: relay, delay, switch | From:SeekIC

Technical characteristicsWorking voltage: 10~16 VSwitch power: ~ 2kVARepeat preparation time: < 250ms
