BA5101 remote control encoding integrated circuit

Published:2011/6/21 1:55:00 Author:Christina | Keyword: remote control, encoding, integrated circuit | From:SeekIC

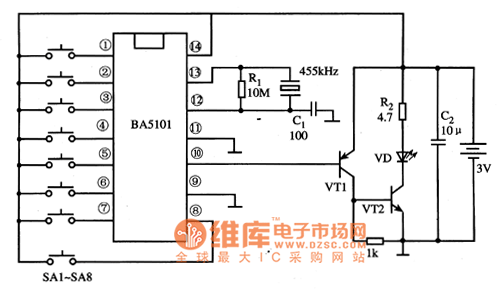

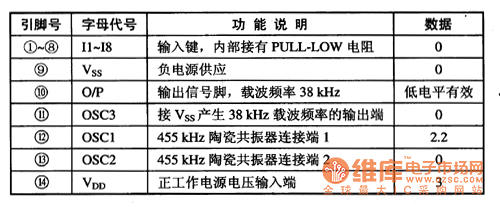

The BA5101 is designed as one kind of remote control encoding integrated circuit that is produced by the Toyo company, and it can be used in various types of electric fan's program control remote control systems. 1.Pin functions and data The BA5101 integrated circuit is in the 14-pin dual-row DIP package, the pin functions and data is as shown in table 1. Table 1 The pin functions and data of the BA5101 2.Typical application circuit The BA5101 integrated circuit can be used with the BA5201, BA3107, infrared receiver LTM49046, the coding transmission system typical application circuit which is composed of the BA5101 is as shown in figure 1. Figure 1 The typical application circuit of BA5101 integrated circuit
