BA5201 (household appliances) infrared remote control decoding circuit diagram

Published:2011/4/22 4:29:00 Author:Rebekka | Keyword: household appliances, infrared remote control , decoding circuit | From:SeekIC

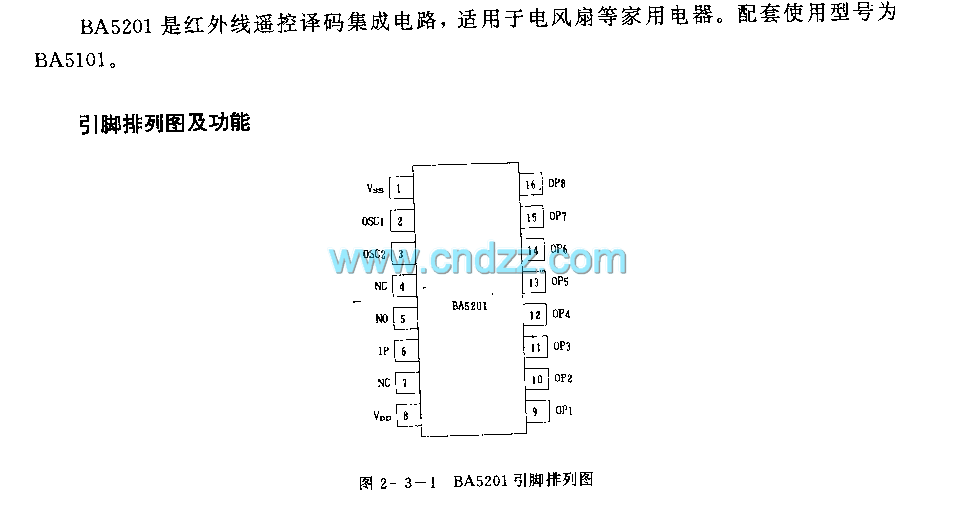

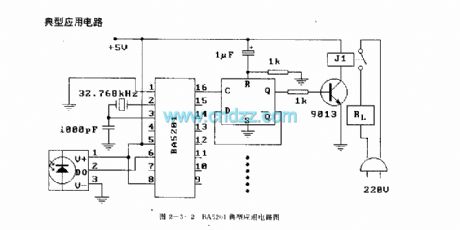

BA5201 is an infrared remote control decoding IC. It is suitable for electric fan and some other household appliances. The supporting use of it is BA5101. Here isthepinout and functions. BA pin symbol and functions. The typical application circuit.
