COMMUTATOR_SYNCHRONIZER

Published:2009/7/23 21:36:00 Author:Jessie | From:SeekIC

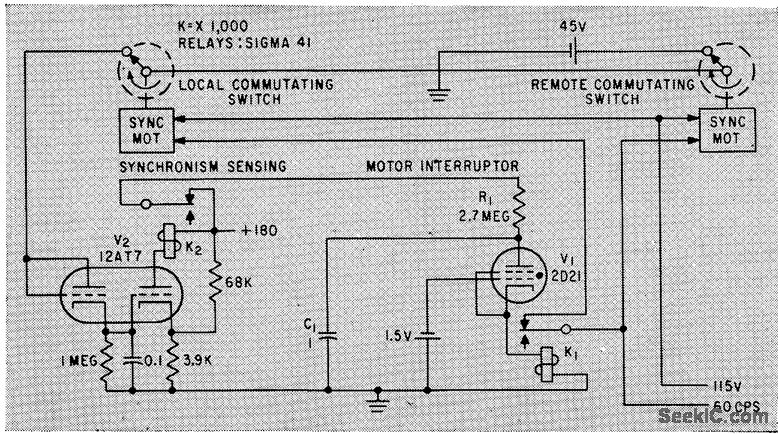

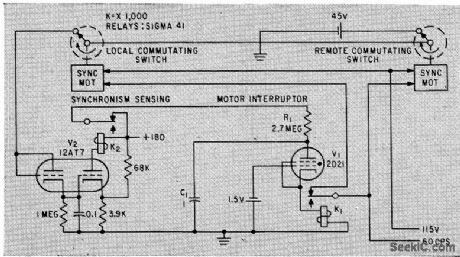

Automatic synchronizing circuit consists of motor interrupter and synchronism-sensing circuit. Commutator drive motor at control transmitter is interrupted until it syncs with commutator drive motor in robot that performs jobs in dangerous radioactive areas. Each interrupt makes motor drop bock 90°, so that only up to three interruptions are required to achieve synchronism.-D. A. Campbell, Multiplex Circuits for Control of a Robot, Electronics, 33;4, p 46-48.
