Composed of TDC1808/TDC1809 digital coding control circuit diagram

Published:2011/4/20 22:51:00 Author:Rebekka | Keyword: digital coding control | From:SeekIC

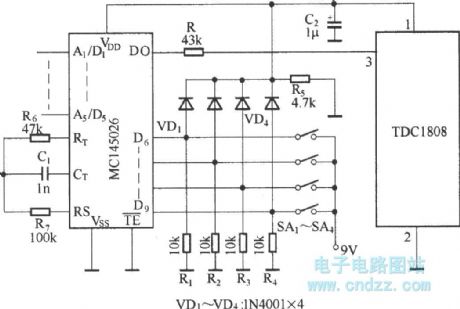

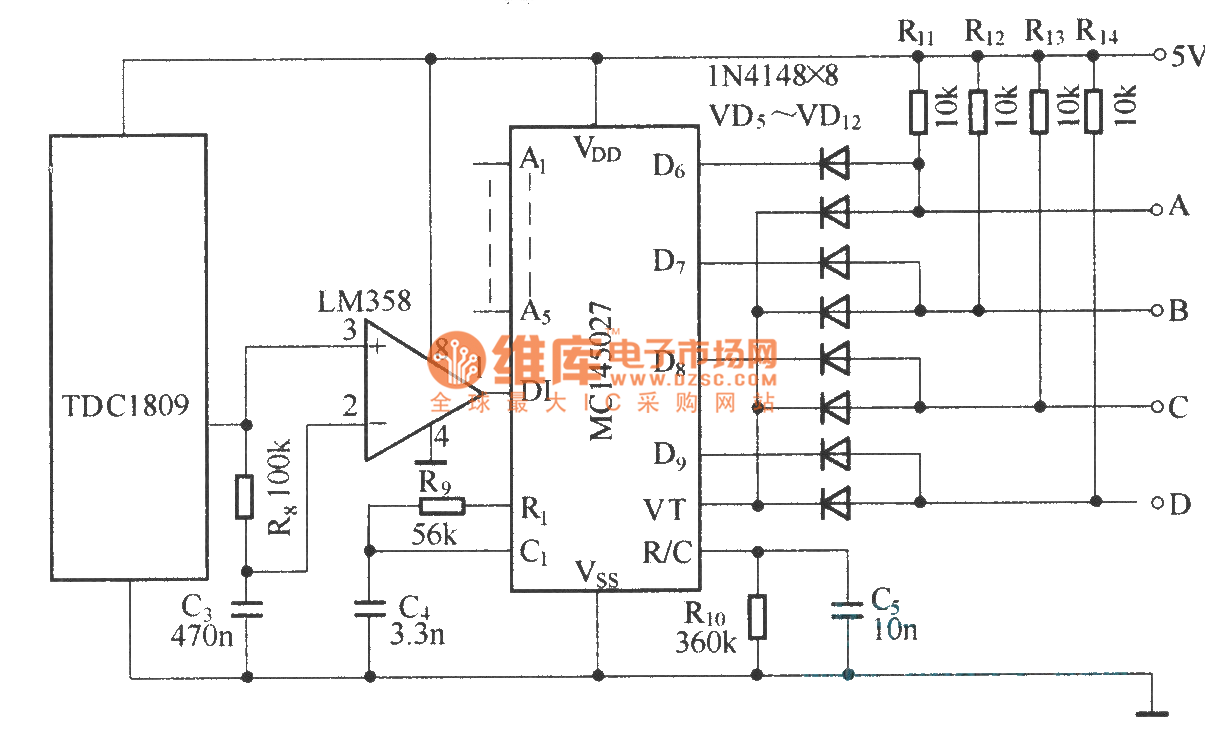

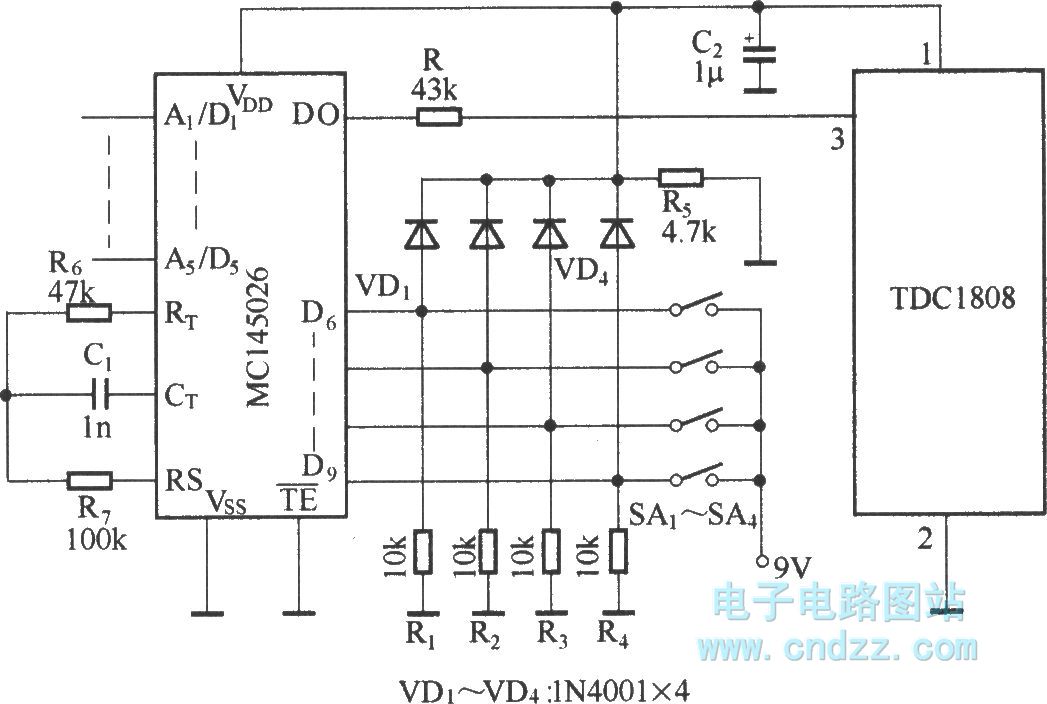

TDC1808/TDC1809 is a pair of wireless remote control transmitter and receiver component. They use an internal antenna, transmitting digital signals or analog signals. It is suitable for a variety of wireless remote control device. The features are small volume, long remote distance, high anti-interference ability etc. Digital coding control circuit is composed by TDC1808/TDC1809. The circuit is shown as above.
