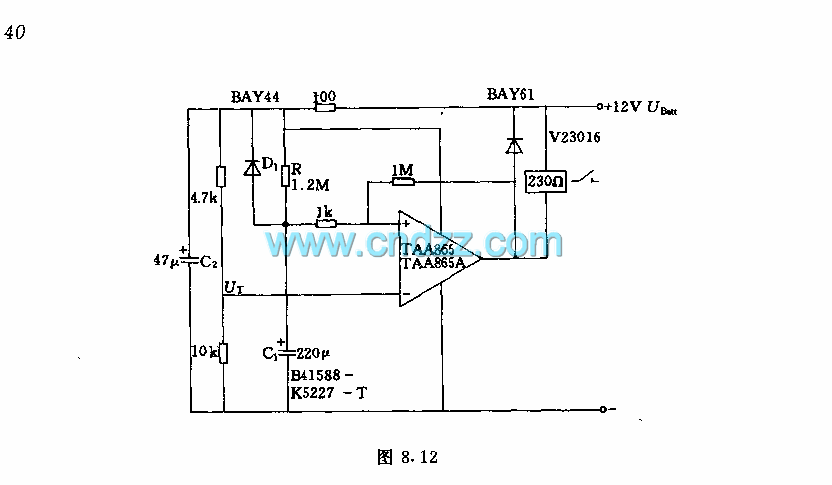

Delay circuit with operational amplifier

Published:2011/8/29 1:51:00 Author:Jessie | Keyword: Delay circuit , operational amplifier | From:SeekIC

After plug-in power, the relay on the output terminal closes immediately, and release safter the prescribed delay time.Technical characteristicsWorking voltage: 12V + 20%Delay time: about 260sRepeat preparation time: about 12s
