EIGHT_COMMAND_TRANSMITTER

Published:2009/7/23 21:43:00 Author:Jessie | From:SeekIC

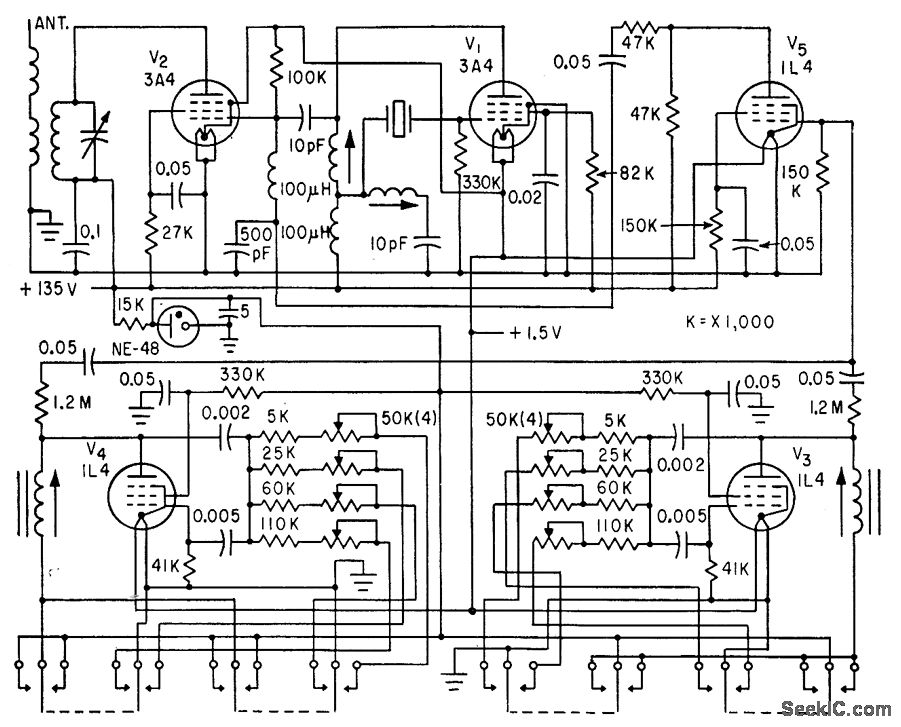

Two lone channels can be transmitted simultaneously. Operates at 27 Mc with 0.25.w output, for controlling model tank-R. A. Baker, Radio-Controlled Tank for Realistic Combat Training, Electronics, 33:45, p 55-57.
