Electronic relay with glow numerating tube

Published:2011/8/29 1:50:00 Author:Jessie | Keyword: Electronic relay , glow numerating tube | From:SeekIC

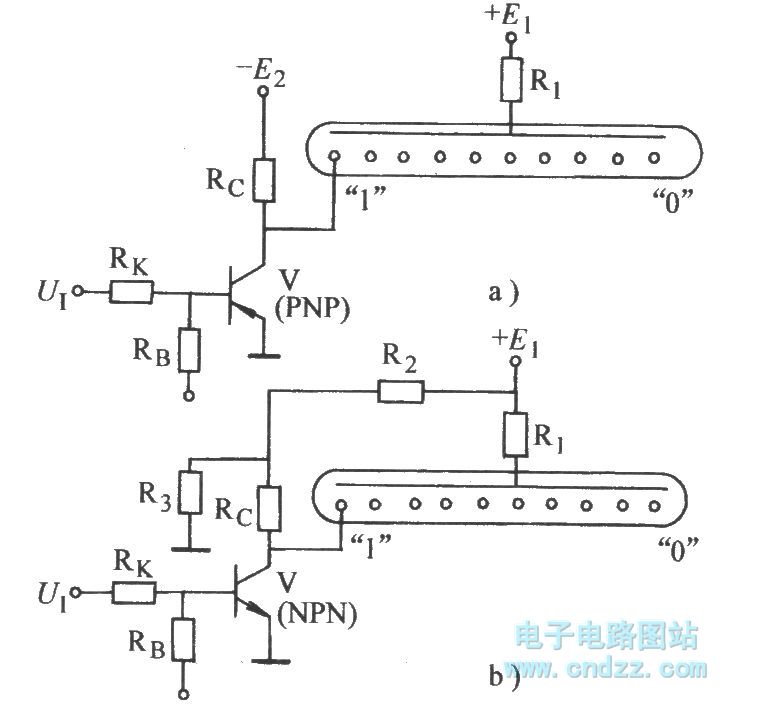

In zero negative logic system,it usesthe circuit shown as Figure a). In thezero positivelogic system is, it uses the circuit shownin Figure b.
