FRANKLIN_SUPERREGENERATIVE_RECEIVER

Published:2009/7/23 21:42:00 Author:Jessie | From:SeekIC

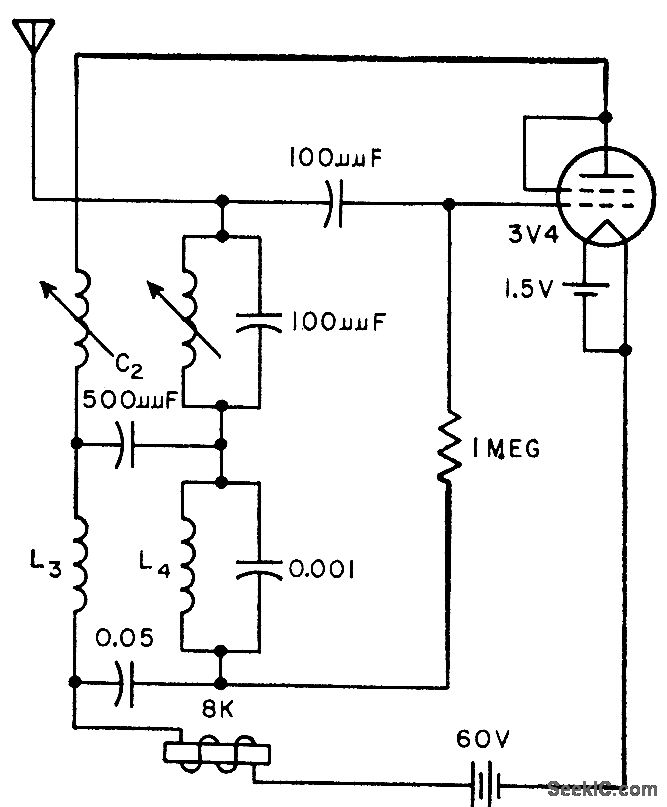

Has low sensitivity to impulse noise, wide dynamic range, high gain, and flexibility, since quench oscillator components are at r-f potential and feedback adjustments more easily made. Oscillates at 27 Mc as modified Hartley with interelectrode capacitances tuned by L1, and also oscillates at 25-kc quench frequency. Provides large decrease in plate current when signal arrives.-S. J.Neshyba and F. E. Brooks, Jr., Stable Receiving Circuits for Remote Control, Electronics, 31:31, p 74-76.
