Published:2011/9/26 22:27:00 Author:Rebekka | Keyword: infrared remote control | From:SeekIC

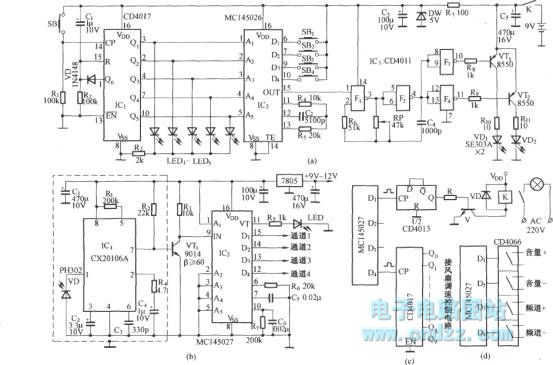

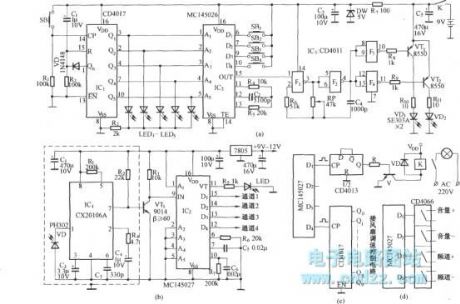

The circuit is translated and edited by MC145026. (a) figure is the remote control transmitter (b) plan is the infrared receiver and decoding circuit (c) Figure shows the controllingcontent which can be connected to each data outputend. (d) graph shows the circuit which the four data ports of MC145027topass four analog switch circuit CD4066and control the volume of an audio amplifier and speakers.
