LINE_CURRENT_IV_CONTROL_RECEIVER

Published:2009/7/22 21:03:00 Author:Jessie | From:SeekIC

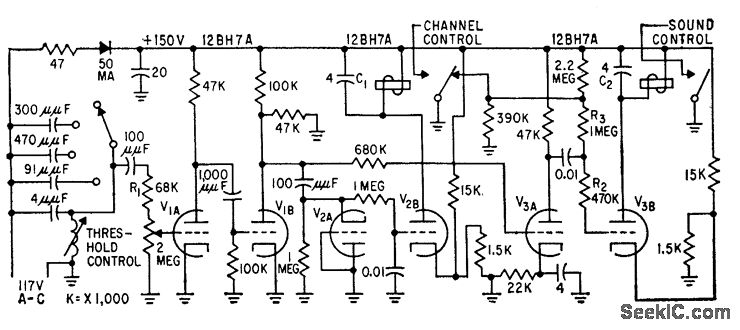

Can be considered as two separate receivers, one detecting unmodulated power-line carrier for channel selection, the other detecting hoth modulated and unmodulated carriers for sound-muting relay. Four individually tuned frequencies (52.5, 57.5, 67.5, und 73.5 kc) ate selectable by switching additional capacitors across that for highest frequency.-J. R. Banker and C. H. Wood, Jr., Line Current Controls Remote Tv Receiver, Electronics, 31:33, p 68-69.
