LOW_POWER_REGULATOR_REFERENCE

Published:2009/7/1 2:11:00 Author:May | From:SeekIC

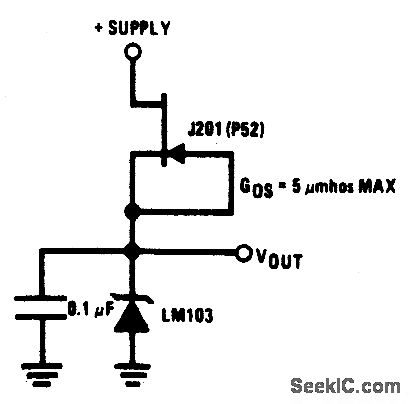

This simple reference circuit provides a stable voltage reference almost totally free of supply voltage hash. Typical power supply rejection exceeds 100 dB.
