M58480P-remote control emission integrated circuit diagram

Published:2011/5/6 22:44:00 Author:Nicole | Keyword: remote control, emission | From:SeekIC

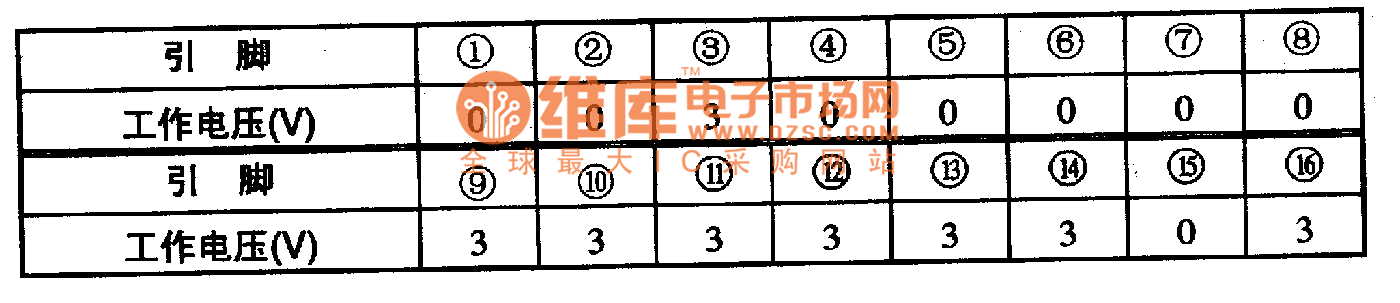

M58480P is a remote control emission integrated circuit which is produced by Mitsubishi Corp, it is used as infrared singal process in the system. 1. internal circuit block diagram and pin function M58480P integrated circuit contains key instruction singal compiling, decoding circuit, path instruction decode circuit, the internal circuit block diagram and pin function of this integrated block is shown in the figure1. 2. practical data M58480P's all kinds of pin working voltage which is used in remote control transmitter is shown in the table1. The figure1 is the internal circuit block diagram and pin function of M58480P integrated block The table1 is the M58480P's all kinds of pin working voltage which is used in remote control transmitter
