MILLER_SUPERREGENERATIVE_RECEIVER_

Published:2009/7/22 21:23:00 Author:Jessie | From:SeekIC

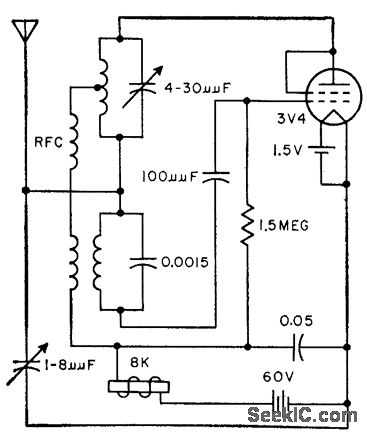

Well-known in model-control field for its reliability. With self-quenching, optimum performance is obtained when receiver is in weak oscillatory slate and incoming signal causes oscillation every third quench cycle. Provides large decrease in plate current when signal arrives.-S. J. Neshyba and F. E. Brooks, Jr., Stable Receiving Circuits for Remote Control, Electronics, 31:31, p 74-76.
