POLARITY_SENSING_ON_OFF_CONTROL

Published:2009/7/22 21:21:00 Author:Jessie | From:SeekIC

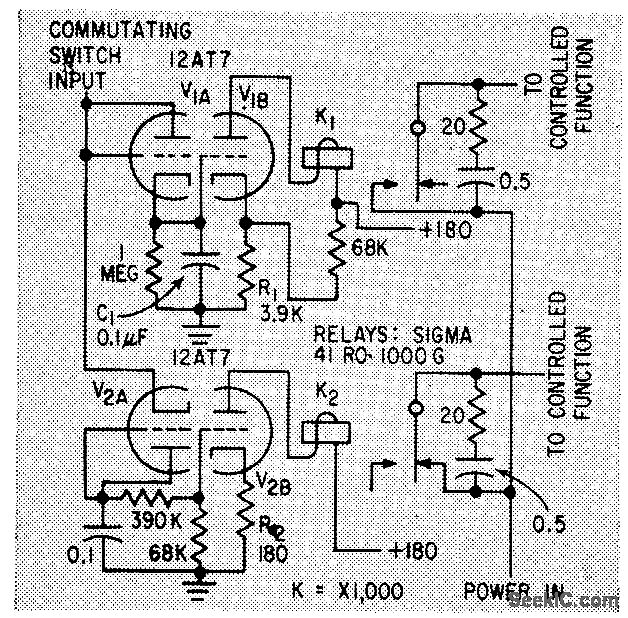

Remote switching circuits are sensitive to positive and negative inputs, thereby doubling number of control channels available from commutating switches of remote control sys tem for robot that performs jobs in danger ous radioactive areas. All functions requiring independent operation are connected to positive input circuits only.-D. A Campbell, Multiplex Circuits for Control of a Robot, Electronics, 33:4, p 46-48.
