Simple artificial intelligence temperature control circuit

Published:2011/6/13 20:28:00 Author:TaoXi | Keyword: Simple, artificial intelligence, temperature control | From:SeekIC

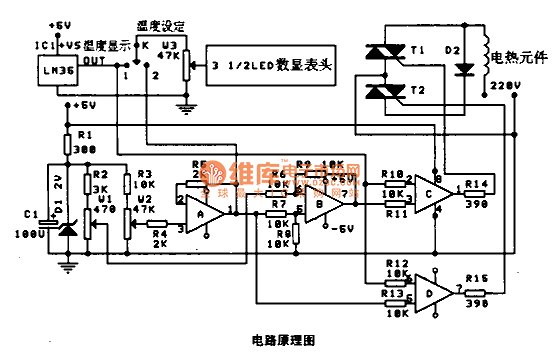

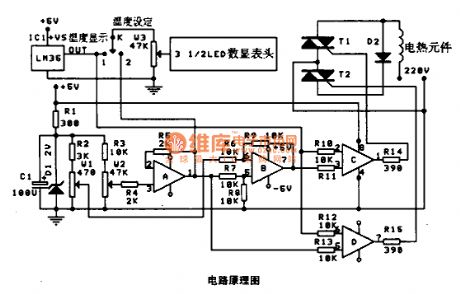

This circuit uses the LM35 voltage type integrated temperature sensor, so that the circuit becomes very simple. The LM35 is designed as one kind of internal circuit integrated temperature sensor which has been corrected, the output voltage is proportional to the celsius temperature, the linearity is good and the sensitivity is high, also it has the moderate precision, the output sensitivity is 10.0MV/℃, the precision is 0.5℃. The measurement range is -55 to +150℃. In the stationary temperature, the self-heating effect is low (0.08℃). The operating voltage is wide, and it can work in the power supply voltage of 4 to 20V with less consumption, the operating current is less than 60 uA. The output impedance is low, when the load is 1MA, the output impedance is 0.1Ω.
