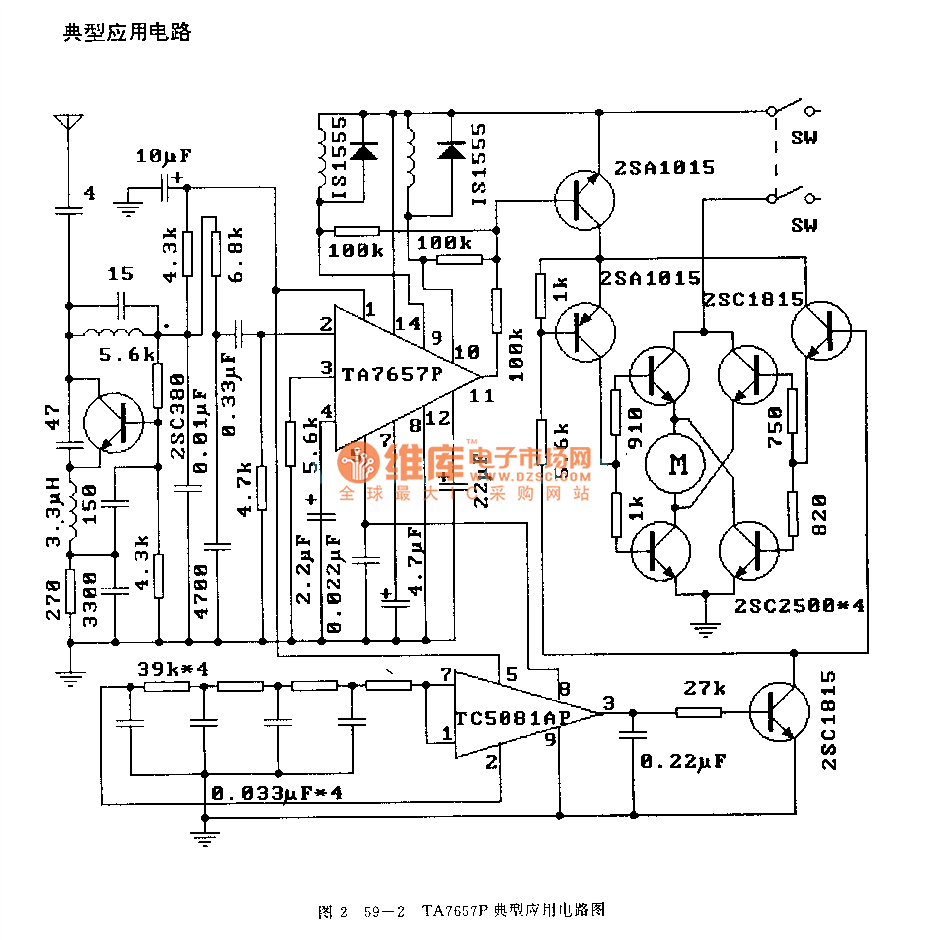

TA7657P (electronic toys) radio remote control receiving circuit

Published:2011/7/27 3:59:00 Author:TaoXi | Keyword: electronic toys, radio, remote control, receiving circuit | From:SeekIC

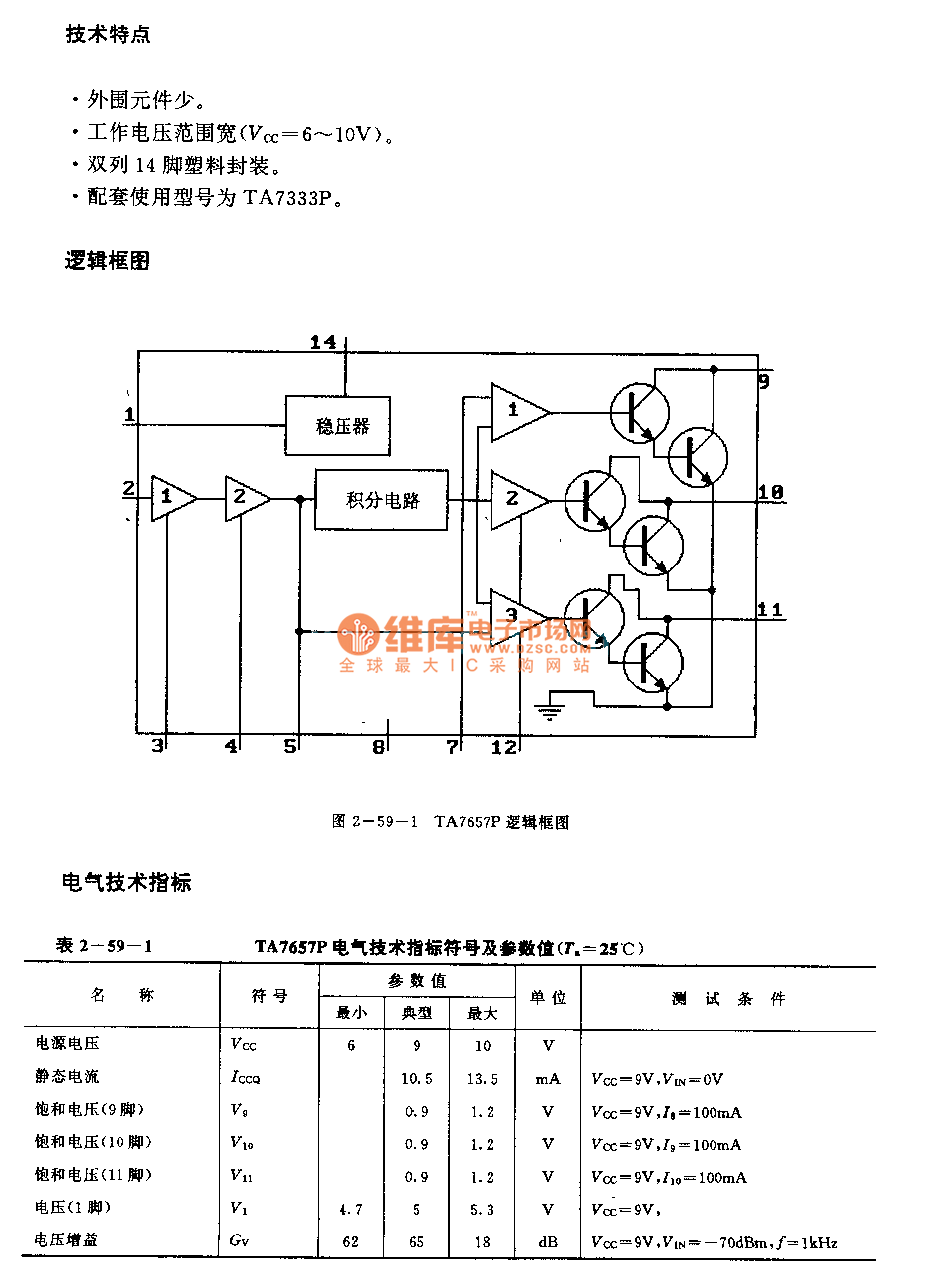

The TA7657P is designed as one kind of radio remote control receiving circuit that can be used in the electronic toys. The internal circuit is composed of the amplifier, the voltage stabilizer, the integral circuit, the comparator and the driver. Features Little external components.Wide operating voltage range (Vcc=6-10V).Dual-row 14-pin plastic package.The matching model is TA7333P.
