TV_STATION_CONTROL

Published:2009/7/23 21:46:00 Author:Jessie | From:SeekIC

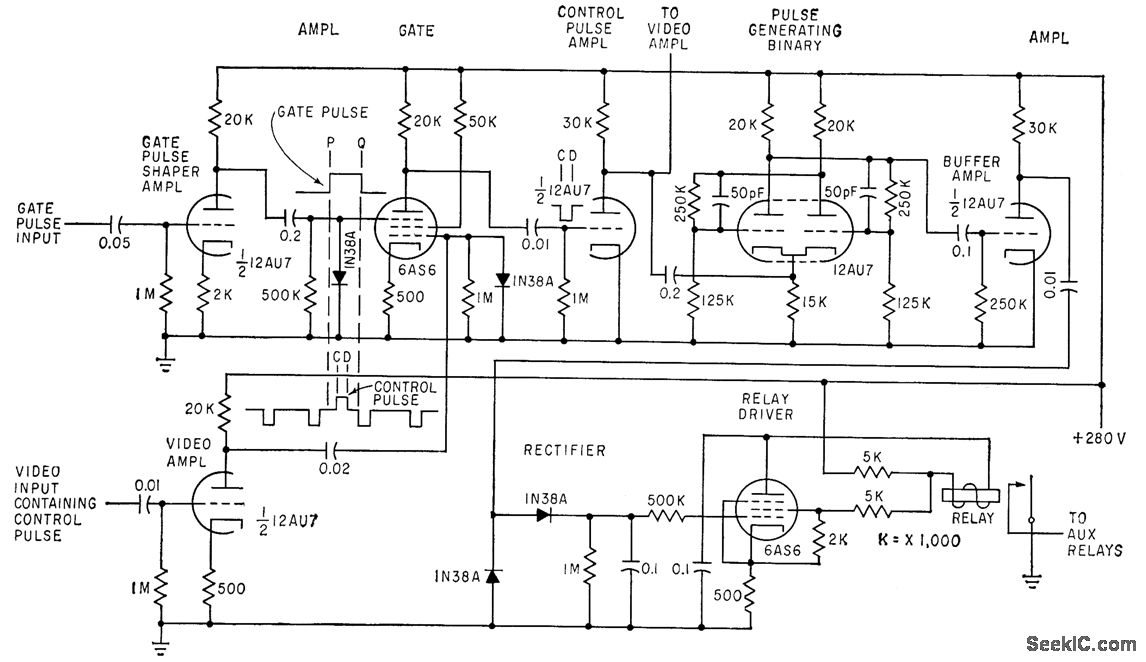

Control pulses transmitted in blanking interval by tv network transmitter are decoded by receiver circuits shown and translated into six different switching actions used to introduce special program matter such as commercials, weather reports, and local film projector material that may be different for each network station.-K. Kazama and T. Ishino, Remote Tv Control by Blanking-Interval Pulses, Electronics, 33:20, p 79-81.
