TV/VCR Infrared Remote Booster

Published:2012/9/10 20:37:00 Author:Ecco | Keyword: TV/VCR , Infrared , Remote Booster | From:SeekIC

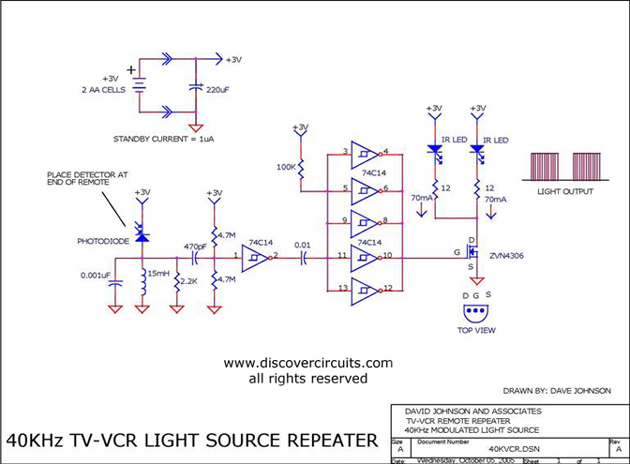

This circuit will boost the signal from any infrared TV or VCR remote, extending the range by a factor of 3X. Source: discovercircuits
