Ten-channel ALC

Published:2011/9/12 21:07:00 Author:Ecco | Keyword: Ten-channel ALC | From:SeekIC

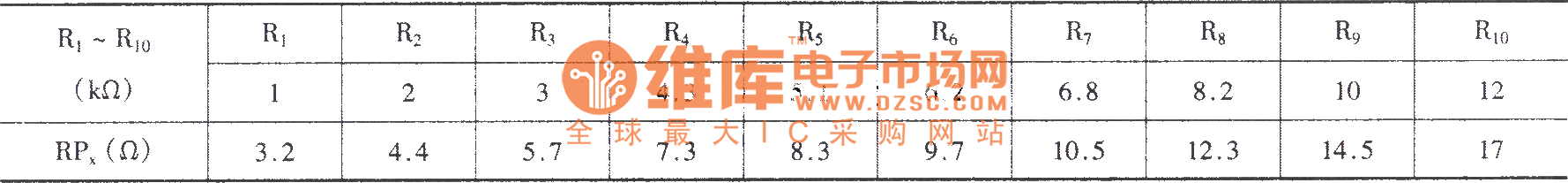

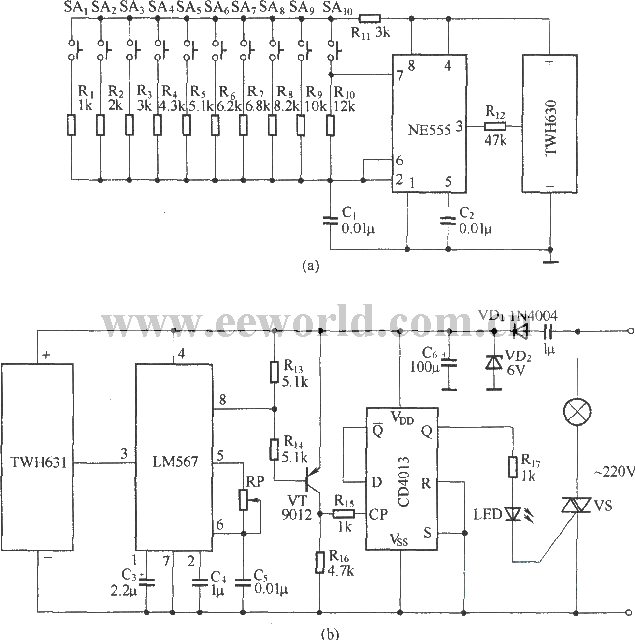

The circuit can control ten roads of load (such as lights), and each load receiver controllers are independent, non-interfering, easy to use. The figure (A) shows the remote control transmitter, and figure (b) shows the remote control receiver circuit. Adjustable resistor RPx, parameters are as follow:
