The design of 315M remote control circuit

Published:2011/10/18 1:45:00 Author:Rebekka | Keyword: remote control circuit design | From:SeekIC

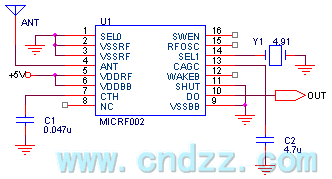

ICRF002 uses ceramic resonators to replacethe different resonator. The receiving frequency can cover 300-440MHz. MICRF002 has two operating modes: scan mode and fixed mode. Scan mode accepts bandwidth of several hundreds of KHz. This mode is mainly used to support the use of LC oscillator transmitter. Because LC transmitting frequencyis higher. In the scan mode, the data communication rate is 2.5K Bytes per second. Bandwidth of fixed pattern is only a few dozens of KHz, and it uses this mode for the supporting of transmitter crystal frequency. Stabilization data rates is up to 10KBytes per second. In addition, the use of wake-up function can wake up decoder or CPU. It can minimize the power consumption. MICRF002 is a complete single-chip superheterodyne receiver circuit. It basically realizes the antenna input after data directly output . Generally the receiver distance is 200 meters.
