Wireless remote control electronic detonator circuit

Published:2011/10/23 21:32:00 Author:May | Keyword: Wireless remote control, electronic detonator | From:SeekIC

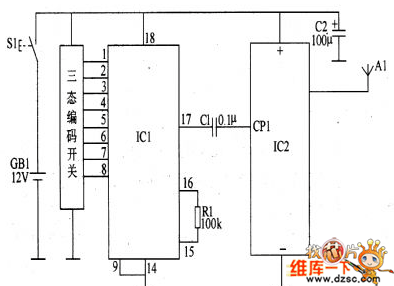

Circuit working principleThis wireless remote control electronic detonator circuit consists of wireless remote control transmitting circuit and wireless receiving detonating circuit.Wireless remote control transmitting circuit consists of control button S1, battery GB1, wireless encoding integrated circuit IC1, wireless transmitting integrated circuit IC2, resistor R1, transmitting aerial A1 and capacitors C1, C2, and it isshow in the diagram 1. Wireless receiving detonation circuit consists of power switch S2(S2-1, S2-2), battery GB2, receive aerial A2, wireless receive intergared circuit IC3, wireless decode interated ciruit IC4; resistors R2-R6, capacitors C3-C5, transistors V1 and V2, relay K and transofrmer booster T, and it isshown in the diagram 8-28. Among them, A2, IC3, IC3, C3, R2, R3, VD1, V1 and K make up wireless receiving control circuit; R4, V2 and T make up oscillation voltage booster circuit; VD2, R5, C5 and R6 make up charge-discharge circuit.
