infrared remote control energy-saving delay switch principle and circuit

Published:2011/5/11 9:00:00 Author:Christina | Keyword: infrared remote control, energy-saving, delay switch, principle | From:SeekIC

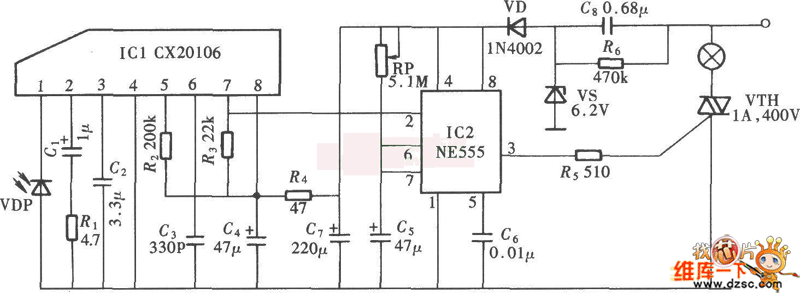

This circuit is composed of the infrared receiving demodulation integrated circuit CX20L06 and NE555, and it uses the bidirectional thyristor as the light switch. This circuit is one kind of integrated infrared remote control switch circuit, the composition is as the figure shown.
