M9900MC Camera Self-Diagnosis Repairing Status Mode Circuit

Published:2011/7/26 1:54:00 Author:Robert | Keyword: Camera, Self-Diagnosis, Repairing, Status, Mode | From:SeekIC

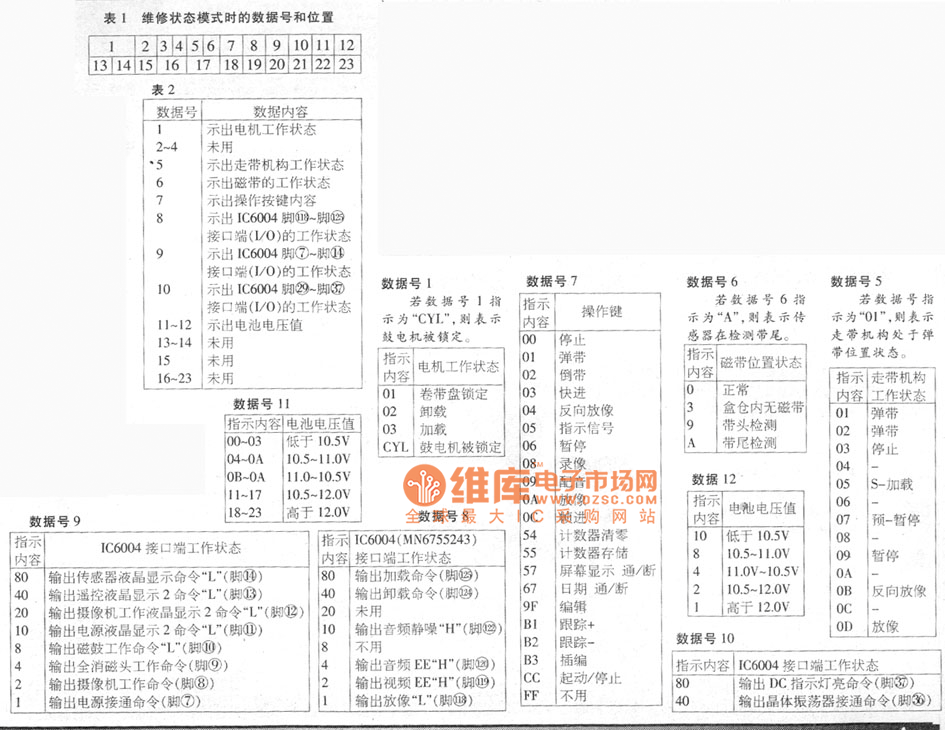

1.Repairing status mode.When the machine is in the repairing status mode, the TV sets and viewfinders' screen would display the data of the random access memory (RAM). The table 1 lists the RAM data's reading imformation and all the data is in hexadecimal mode for displaying.2.Data details in repairing status mode.When pressing the start/stop switch and the memory switch at the same time, after the power switch is connected, the TV sets' screen could display the detail information of No.1 to No.23 which is listed in table 2. And part of the data number's indicating imformation is listed after the list's contents. The picture shows the M9900MC camera self-diagnosis repairing status mode circuit.
