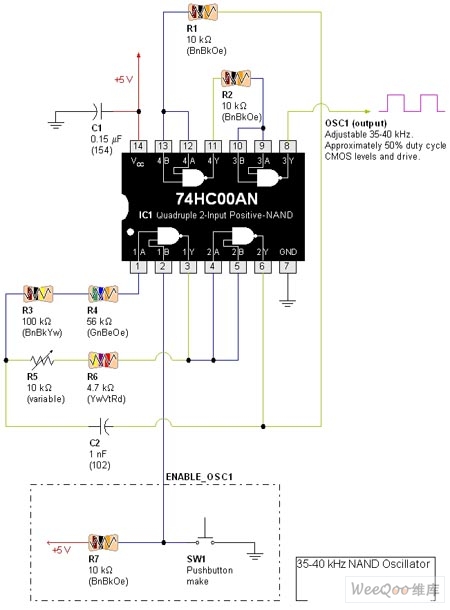

35KHz-40KHz Standard Square-wave Generator Circuit

Published:2011/7/18 5:14:00 Author:Felicity | Keyword: 35KHz-40KHz, Standard Square-wave Generator, Circuit | From:SeekIC

Reprinted Url Of This Article:
http://www.seekic.com/circuit_diagram/Sensor_Circuit/35KHz_40KHz_Standard_Square_wave_Generator_Circuit.html

Print this Page | Comments | Reading(3)
