ADJUSTABLE_DUTY_CYCLE_SQUARE_WAVE_OSCILLATOR

Published:2009/7/21 3:04:00 Author:Jessie | From:SeekIC

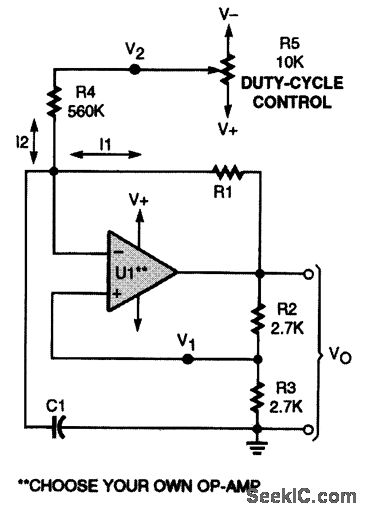

Use R5 to adjust this variable-duty-cycle square-wave generator. That potentiometer controls I2 to vary the timing.
