Average_temperature_sensor

Published:2009/7/19 22:06:00 Author:Jessie | From:SeekIC

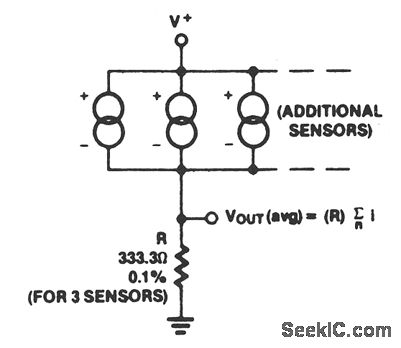

This circuit shows an AD590 connected as an average-temperature sensor. The sum of the AD590 currents appears across R, which is chosen by R = (10 kΩ)/n, where n = the number of sensors. Harris Semiconductors, Data Acquisition 1991 p 12-7
