GY-YZ-161 high precision pressure sensor circuit

Published:2011/5/5 22:27:00 Author:Sharon | Keyword: high precision, pressure sensor | From:SeekIC

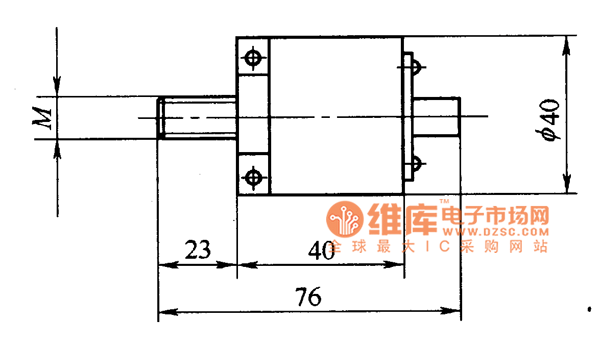

GY-YZ-161 high precision pressure sensor is made by use of semiconductor and micro-machining technology to combine solid-state integrated process technology with the isolating diaphragm.Its shape as shown in the figure.Pressure detection part is made by pressure-sensitive chip of high-precision and high stability, and processed by intensive temperature compensation and amplification, so as to make it more suitable for precision pressure test.GY-YZ-161 high precision pressure sensor is of high accuracy, high stability, high reliability and compatible with corrosive media, etc., and applicable to aerospace, weapons, ships and other fields.
