ION_SENSING_ELECTROSCOPE

Published:2009/6/19 4:57:00 Author:May | From:SeekIC

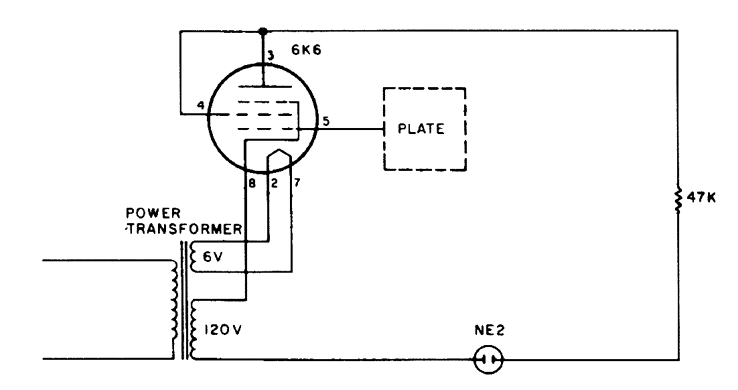

Negative ions are sensed by a plate antenna. A negative charge induced on the plate cuts off a vacuum tube, causing the neon indicator to go out.
