LATCHING_WATER_SENSOR

Published:2009/7/9 3:09:00 Author:May | From:SeekIC

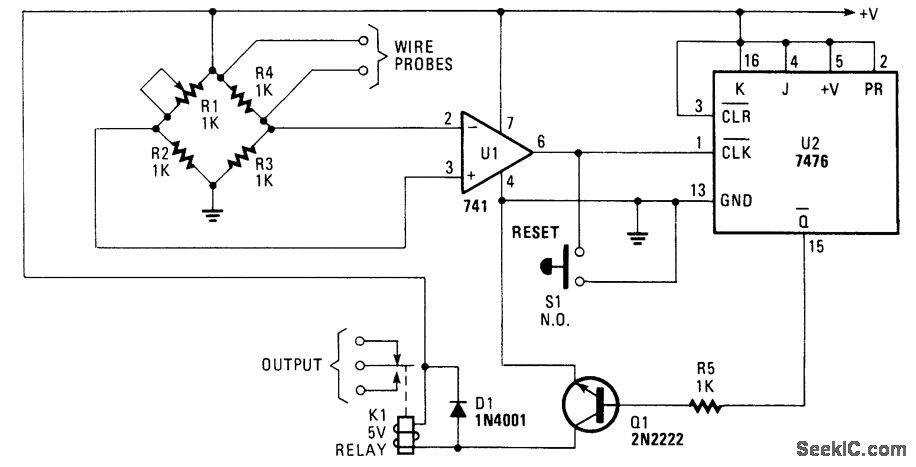

A balanced Wheatstone bridge controls a JK flip-flop that uses an op amp as an interface. This in turn drives a relay circuit. R1 through R4 can be made larger for increased sensitivity.
