LIQUID_LEVEL_SENSOR

Published:2009/7/9 2:49:00 Author:May | From:SeekIC

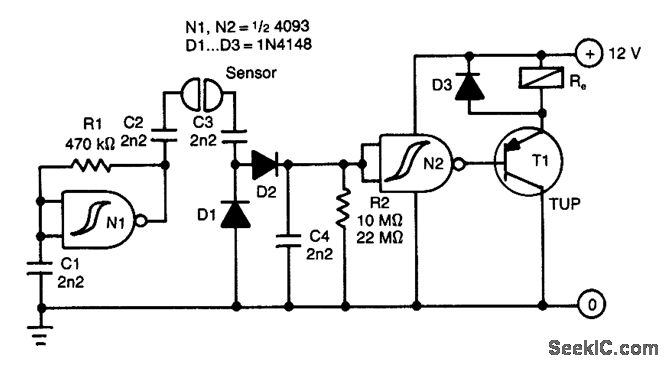

This circuit uses an ac-sensing signal to elimi-nate electrolytic corrosion. The ac signal is rectifted and used to drive a transistor that controls a relay.
