Light control timing switch circuit

Published:2011/6/8 7:11:00 Author:Christina | Keyword: Light control, timing, switch | From:SeekIC

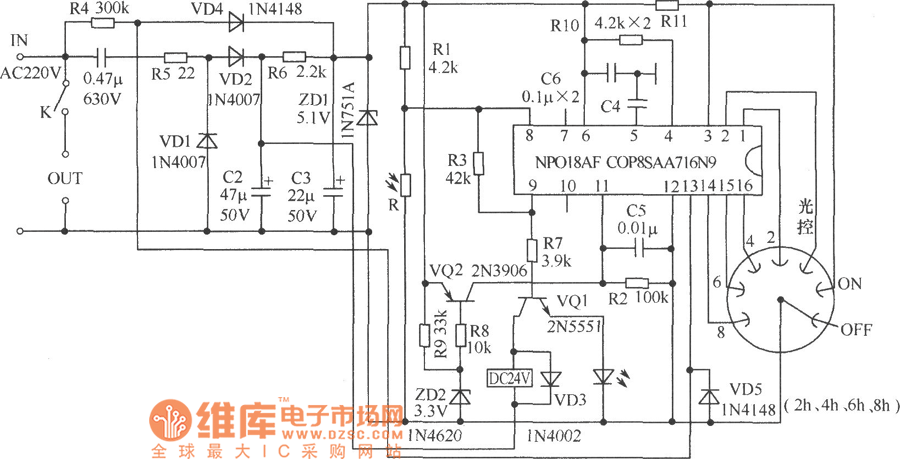

The Mexico light control timing switch circuit is as shown in the figure, this circuit can be used to control the outdoor lamps and the power supply of the advertisement lightbox, it is one kind of products that combined with the light control function and the gear shifting timing function, this circuit is very simple and easy to make. Turn the rotary switch to the timing gear of 2h, 4h, 6h or 8h, when there is no light, this circuit will automaticly control the corresponding time to reach the purposes of energy-saving and energy consumption reducing.
