Low_noise_line_driver

Published:2009/7/23 21:28:00 Author:Jessie | From:SeekIC

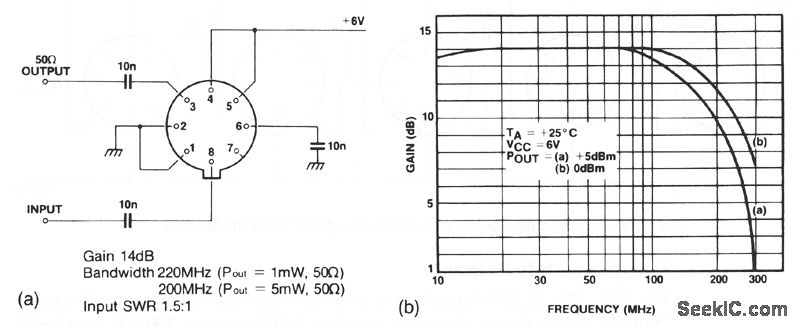

Figure 2-4A shows an SL560 used as a 50-Ω line driver. Figure 2-4B shows the typical frequency response.
