MN12C2010 Memory Integrated Circuit

Published:2011/5/8 22:16:00 Author:Sharon | Keyword: Memory, Integrated | From:SeekIC

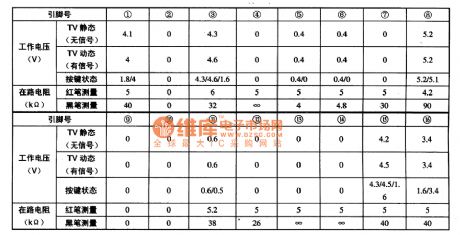

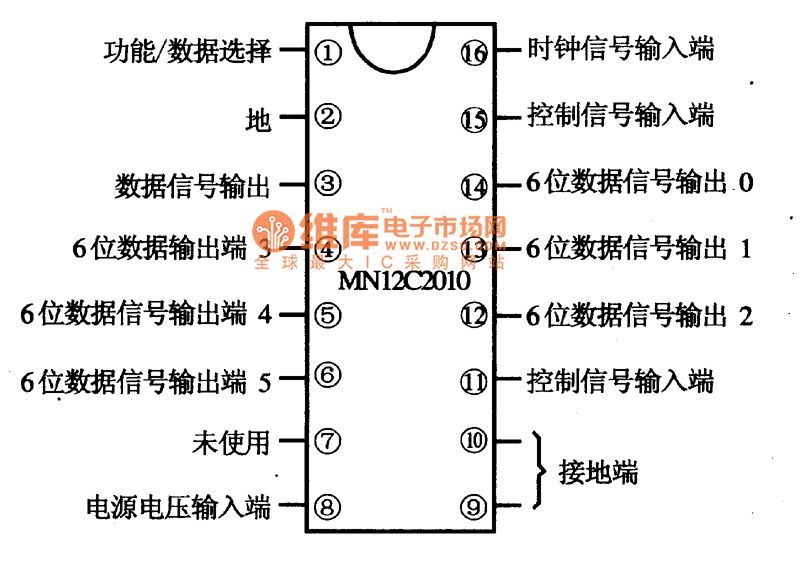

MN12C2O10 is memory integrated circuit produced by Matsushita, widely used in televisions, audio equipment, air conditioners and other series of control circuit. 1. FeaturesMN12C2010 IC embedded data storage matrix circuit, clock circuit and control circuit. 2. Pin functions and data MN10C2010 IC is in 16-pin double row package. The pin functions is shown in the figure, and the operating parameters are listed in Table.
