Simple Light-operated Switch Circuit

Published:2011/5/4 4:02:00 Author:chopper | Keyword: Light-operated Switch | From:SeekIC

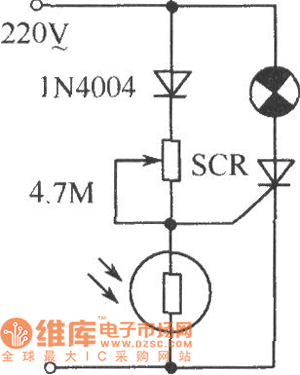

As shown in thefigure is a simple light-operated switch circuit.In some public places,it is convenient as well as power-saving whenapplied to,such as,passageway、street lamp...It starts automatically in the dark;and closes in the daytime.It is applicable to different types of photoresistance and opens under certain conditions(degree of darkness) by regulating 4.7 M Ω potentiometer.
