electric mixer circuit

Published:2011/8/17 7:13:00 Author: | Keyword: electric mixer | From:SeekIC

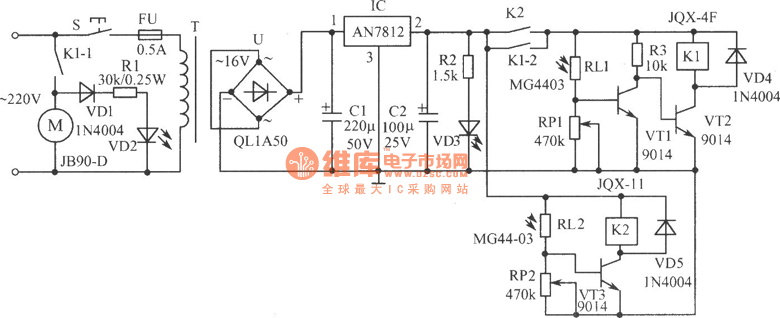

The materiel of electric mixer used in industrial and mining enterprises often has odors or dust,so the operators should not be too close.The light-operated electric mixer(or other electrical appliance) circuit shown in the picture can adopt ordinary flashlight as remote control commands, and it can control the electric mixer in 10m.The entire circuit can be put into plastic box,and it is easy to use in the field.Components selection: IC adopts AN7812 three-terminal regulator IC. VT1~VT3 use 9014 transistor.
